The document provides information about Synergy Mwave's mixer products, including triple-balanced mixers and mixers with very high dynamic range. The document lists the frequency range, conversion loss, and input power characteristics of different models.
This document provides technical specifications for a range of triple-balanced mixers manufactured by Synergy Microwave Corporation. The devices are designed with very high dynamic range capabilities, supporting an LO level of +17 dBm.

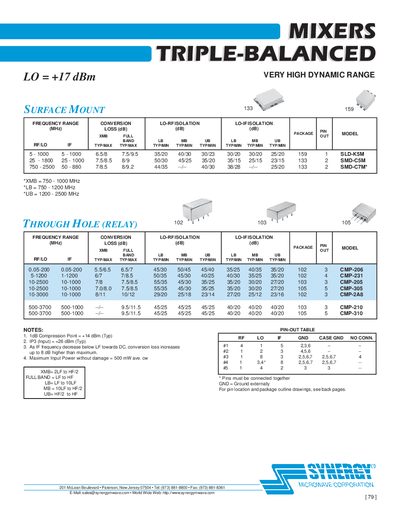

The datasheet details performance parameters including frequency ranges, conversion loss, isolation figures (LO-RF and LO-IF), and 1dB compression points for various models available in Surface Mount, Through Hole (Relay/TO-CAN), and Coaxial packages.
| LO Level | +17 dBm |
|---|---|
| 1dB Compression Point | +14 dBm (Typ) |
| IP3 (Input) | +26 dBm (Typ) |
| Maximum Input Power | 500 mW ave. cw |
The specified LO level is +17 dBm.
The typical 1dB Compression Point is +14 dBm.
The maximum input power without damage is 500 mW average continuous wave.
