DEE Corp. CTD100/CDT100 Thyristor-Diode Modules Datasheet

The document describes the features and characteristics of CTD100, CDT100 Thyristor-Diode modules, including voltage, power loss, temperature, current, etc.

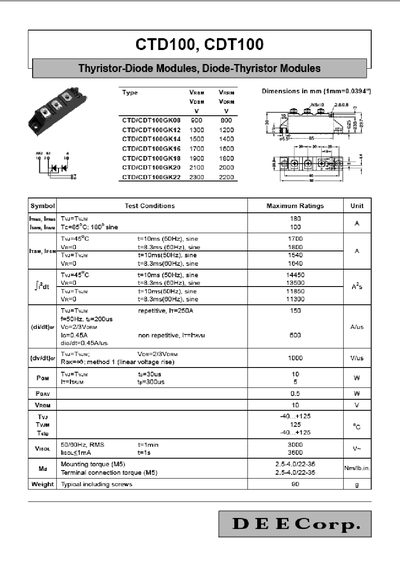

DEE Corp. CTD100/CDT100 Thyristor-Diode Modules Datasheet - cover page
Brand
CTD100/CDT100
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
4
File format
PDF
File size
243 KB
Published
05 June, 2012
Updated
28 September, 2023
MD5 checksum
3BDE476E42EDAD94F94B0929960A7CC5
PDF
DEE Corp. CTD100/CDT100 Thyristor-Diode Modules Datasheet PDF

About this manual

This document provides technical specifications for the CTD100 and CDT100 series of Thyristor-Diode and Diode-Thyristor modules manufactured by DEE Corp. The datasheet lists maximum ratings such as forward current and repetitive peak off-state voltage, along with characteristic values like on-state voltage drop.

What's inside

  • Maximum Ratings
  • Characteristic Values
  • Features
  • Applications
  • Advantages
  • Circuit Diagrams

Specifications

On-State Voltage Drop (V1, VF)1.74 V
Isolation Voltage3600 VRMS
Weight90 g

Frequently asked questions

What is the maximum forward current rating for these modules?

The maximum forward current is rated at 180 A under specific test conditions.

How much mounting torque is required for the M5 screws?

You must apply a mounting torque between 2.6 and 4.0 N·m.

What is the typical weight of the module including screws?

The typical weight, including screws, is 90 g.
