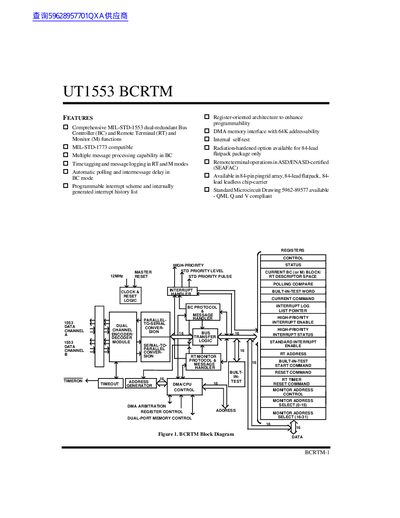

This document describes the features and characteristics of BCRTM-1 UT1553 BCRTM, including comprehensive MIL-STD-1553 dual-redundant Bus Controller (BC) and Remote Terminal (RT) and Monitor (M) functions, MIL-STD-1773 compatibility, multiple message processing capability in BC, time tagging and message logging in RT and M modes, automatic polling and intermessage delay in BC mode, programmable interrupt scheme, register-oriented architecture, DMA memory interface, internal self-test, and radiation-hardened option.
The UTStarcom UT1553 BCRTM is a monolithic CMOS device designed to solve MIL-STD-1553B multiplexed serial data bus design problems. It integrates all three defined MIL-STD-1553B functions: Bus Controller (BC), Remote Terminal (RT), and Monitor (M) into a single chip, thereby reducing host CPU overhead.
| Architecture Type | Register-oriented architecture |
|---|---|
| Memory Addressability | 64K addressability |
| Compatible Standard | MIL-STD-1773 |
| Max Memory Usage (RT Mode) | 128 messages |
| Max Memory Usage (BC/M Mode) | 64K memory space |
It implements all three of defined MIL-STD-1553B functions: Bus Controller, Remote Terminal, and Monitor.
Yes, it can automatically retry a message on busy, message error, and/or response time-out conditions up to four times.
