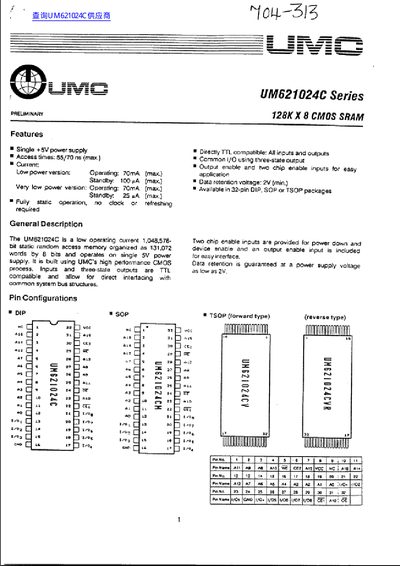

The UM621024C is a low operating current 1,048,576-bit static random access memory organized as 131,072 words by 8 bits. It operates on a single +5V power supply and features fully static operation with no clock or refreshing required. The device includes two chip enable inputs for power down and device enable, along with an output enable input for easy interfacing.
| Memory Capacity | 128K x 8 bits (1,048,576 bits) |
|---|---|
| Organization | 131,072 words x 8 bits |
| Power Supply Voltage | +5V (4.5V to 5.5V) |
| Operating Temperature Range | 0°C to +70°C |
| Operating Current (Standard) | 100 mA max |
| Standby Current (Low Power) | 25 uA max |
| Available Packages | 32-pin DIP, SOP, TSOP |
It is organized as 131,072 words by 8 bits.
No, it features fully static operation with no clock or refreshing required.
The device is available in 32-pin DIP, SOP, and TSOP packages.
