Model BH Series High Profile SIP Thick Film Conformal Coated Resistor Networks Specifications

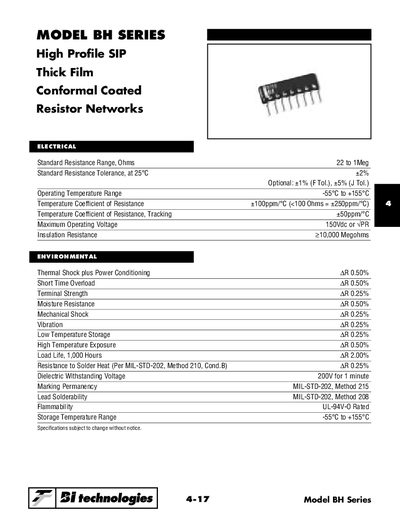

This document is a datasheet for the Bil Technologies BH Series High Profile SIP Thick Film Conformal Coated Resistor Networks. It covers standard resistance ranges from 22 to 1Megohms with optional tolerances of +1% or +5%. The components operate within a temperature range of -55°C to +155°C and feature various reliability ratings including thermal shock, moisture resistance, and solder heat resistance.
| Standard Resistance Range | 22 to 1Meg Ohms |
|---|---|
| Standard Resistance Tolerance | 4% at 25°C |
| Operating Temperature Range | -55°C to +155°C |
| Maximum Operating Voltage | 150Vdc or VPR |
| Insulation Resistance | >10,000 Megohms |
| Flammability Rating | UL-94V-0 Rated |
The standard tolerance is 4%, with optional tolerances of +1% (F Tol.) and +5% (J Tol.).
The substrate material is Alumina and the resistor material is Cermet.
