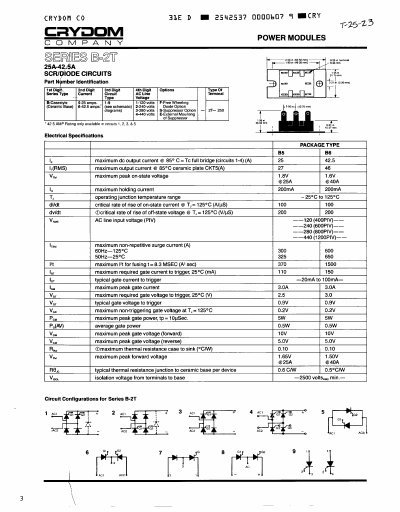

This document provides technical data for the Crydom Series B-2T power modules. It includes part number identification guides explaining how to decode series type, current rating, voltage line, terminal style, and base case options.
The datasheet lists comprehensive electrical specifications such as maximum output current at various temperatures, peak on-state voltage, holding current, operating junction temperature range, and critical rates of rise for current and voltage. It also specifies gate trigger requirements including current, voltage, and power limits.
| Maximum output current @ 85°C (full bridge) | 25 A to 42.5 A |
|---|---|
| Maximum peak on-state voltage | See table column headers (implied) |
| Operating junction temperature range | -25°C to 125°C |
| Maximum non-repetitive surge current (60Hz) | 300 A to 600 A |
| Isolation voltage from terminals to base | 2500 volts a.c. |
The operating junction temperature range is -25°C to 125°C.
The modules offer a maximum output current ranging from 25 A to 42.5 A depending on the specific model.
