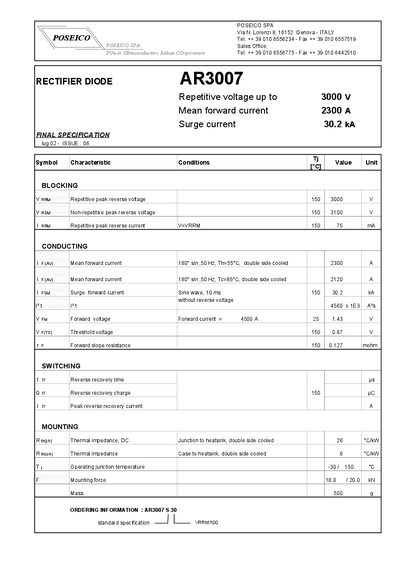

POSEICO AR3007 Repetitive voltage up to 3000 V Mean forward current 2300 A Surge current 30.2 kA

About this manual

This document is a technical datasheet for the POSEICO AR3007 high-power rectifier diode. It provides key specifications including a repetitive peak reverse voltage of up to 3000 V and a mean forward current of 2300 A under specific cooling conditions.

The sheet includes detailed electrical characteristics such as forward voltage, threshold voltage, and switching parameters like reverse recovery time. Additionally, it presents dissipation characteristics for both square wave and sine wave applications through graphical data.

What's inside

• Rectifier Diode
• Electrical Characteristics
• Dissipation Characteristics
• Switching Parameters
• Mounting Requirements
• Ordering Information

Specifications

Frequently asked questions

What are the rated forward current limits for this diode?

The mean forward current is 2300 A at a case temperature of 55°C and 2120 A at 85°C, with both sides cooled.

What is the maximum reverse voltage this diode can block?

The repetitive peak reverse voltage rating for the AR3007 is 3000 V.

What are the requirements for mounting this diode?

Mounting requires a clamping force between 18.0 and 720.0 kN on a cleaned, lubricated heatsink with specific surface flatness.
