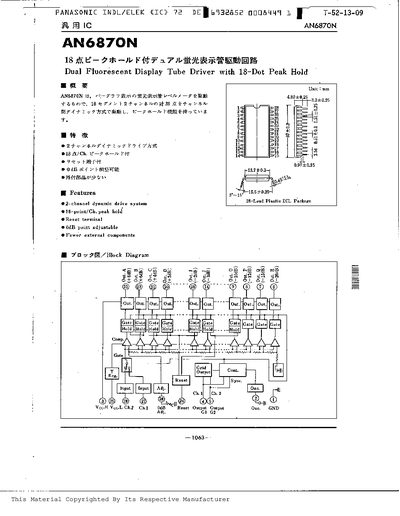

The document is a technical specification sheet for the AN6870N integrated circuit. It details the device's features, including its 2-channel dynamic drive system and reset terminal.
Key specifications provided include absolute maximum ratings, electrical characteristics under specific test conditions (Vcck=20V), and pin descriptions for input/output levels. This manual is written in Japanese.
| Package Type | 28-Lead Plastic DIL Package |
|---|---|
| Drive System | 2-channel dynamic drive system |
| Peak Hold Points | 18-Dpoint/Ch. |
| Power Dissipation (Pd) | 700 mW |
The maximum power dissipation (Pd) is 700 mW.
The device has a maximum power dissipation rating of 700 mW.
The device operates within a temperature range from -20 to +95 C.
