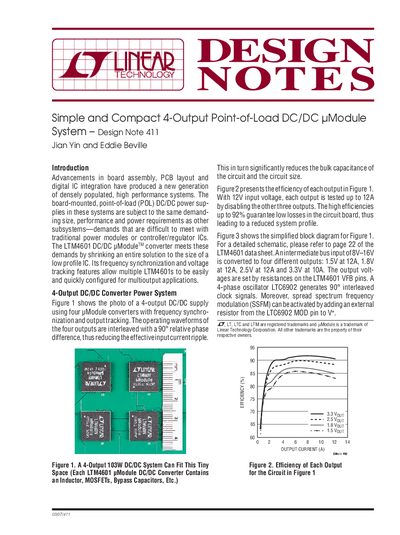

This document introduces a simple and compact 4-output point-of-load DC/DC µModule system that meets the demanding size, performance, and power requirements of densely populated, high-performance systems. The LTM4601 DC/DC µModule converter shrinks the entire solution to the size of a low-profile IC, and its frequency synchronization and voltage tracking features allow for easy and quick configuration for multi-output applications.
This document describes a design solution for a densely populated, high-performance 4-output DC/DC power supply. The system utilizes four LTM4601 pModule converters configured to deliver outputs of 1.5V at 12A, 1.8V at 12A, 2.5V at 12A, and 3.3V at 10A from an intermediate bus input of 8V-16V.
The system can handle a total maximum power of 103W.
An intermediate bus input of 8V-16V is converted to four different outputs.
The outputs are 1.5V at 12A, 1.8V at 12A, 2.5V at 12A, and 3.3V at 10A.
