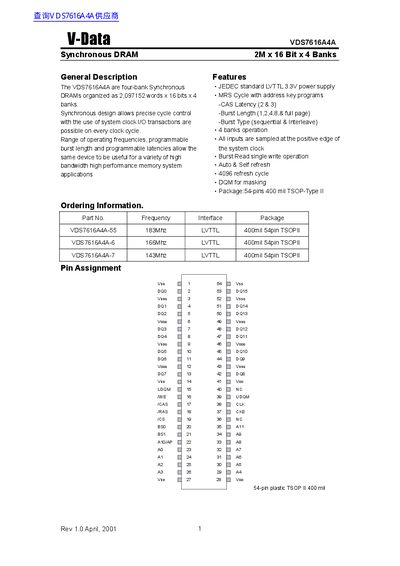

V-Data VDS7616A4A is a synchronous DRAM with 4 banks and a storage capacity of 2M x 16 bits. It supports various operating frequencies and latencies, making it suitable for high bandwidth high performance memory system applications.
The V-Data VDS7616A4A is a four-bank Synchronous DRAM organized as 2,097,152 words x 16 bits x 4 banks. Its synchronous design allows for precise cycle control with system clock I/O transactions possible on every clock cycle.
The device features programmable burst length and latencies to support high bandwidth memory systems. It operates with a +3.3V LVTTL power supply and is available in a 54-pin 400 mil TSOP-Type II package.
| Organization | 2M x 16 Bit x 4 Banks |
|---|---|
| Supply Voltage | 3.3V LVTTL |
| Package Type | 54-pin TSOP-Type II |
| Operating Frequency (Max) | 183MHz |
| Refresh Cycle | 4096 cycles |
The VDS7616A4A-55 variant operates at a maximum frequency of 183MHz.
Yes, it supports programmable burst lengths of 1, 2, 4, 8, and full page.
The device is a four-bank Synchronous DRAM.
