Ningbo Foryard Opto FYS-5017AX/BX-XX LED Digit Display Datasheet

This document describes the features and characteristics of the LED digit display FYS-5017AX/BX-XX from NINGBO FORYARD OPTO ELECTRONICS CO., LTD., including standard brightness, low current operation, excellent character appearance, etc.

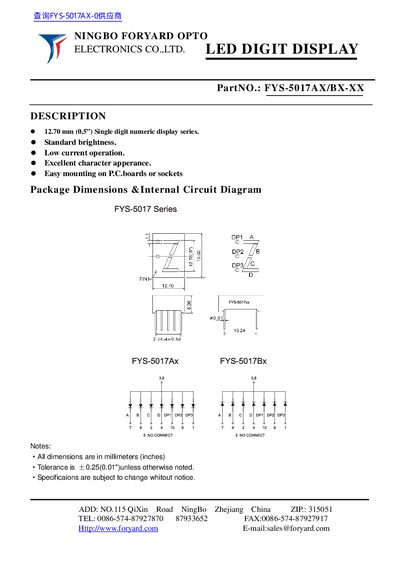

Ningbo Foryard Opto FYS-5017AX/BX-XX LED Digit Display Datasheet - cover page
Brand
Ningbo
Category
LED Driver Controller
Document type
Datasheet
Language
English
Pages
4
File format
PDF
File size
350 KB
Published
05 June, 2012
Updated
28 September, 2023
MD5 checksum
41BA9F54DFA4EBA0F9E5759FD3A39A8F
PDF
Ningbo Foryard Opto FYS-5017AX/BX-XX LED Digit Display Datasheet PDF

About this manual

This document is a technical datasheet for the Ningbo Foryard Opto FYS-5017AX/BX-XX series, which are 12.70 mm (0.5") single digit numeric LED displays. The product features standard brightness and low current operation, designed for easy mounting on P.C. boards or sockets.

What's inside

  • Description
  • Absolute Maximum Ratings
  • Chip Characteristics
  • Electrical Characteristics
  • Package Dimensions

Specifications

Display Type12.70 mm (0.5") Single digit numeric display series.
Reverse Voltage30V
Forward Current30 mA
Power Dissipation100 mW

Frequently asked questions

What is the physical size of this LED digit display?

The display measures 12.70 mm (0.5 inches) in height.

How many pieces are packed per carton for the FYS-5017A/Bx-xx model?

There are 5,120 pieces in a single carton.
