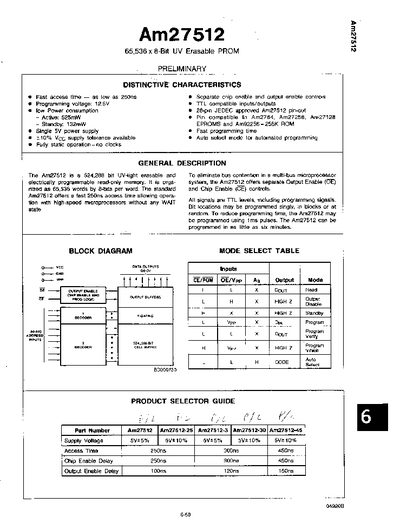

The document describes the Am27512 as a 524,288 bit UV-light erasable and electrically programmable read-only memory organized as 65,536 words by 8-bits per word. It features a fast access time of as low as 250ns, allowing operation with high-speed microprocessors without wait states.
| Capacity | 65,536 x 8-Bit |
|---|---|
| Access Time | 250ns (typical) |
| Power Consumption (Active) | 525mW |
| Power Consumption (Standby) | 132mW |
| Supply Voltage | 5V |
| Operating Temperature (Commercial) | 0°C to +70°C |
It must be exposed to an ultraviolet light source with a dosage of 15 Wseconds/cm².
Programming requires a voltage of 12.5V applied to the OE/Vpp pin.
Yes, multiple devices can be programmed in parallel by applying a TTL low-level program pulse to each device's CE/PGM input.
