AL5DAxxxx 3.3V, 5V Asynchronous Dual-Port SRAM is a dual-port SRAM produced by AverLogic Technologies, Corp. that supports 1k/2k/4K/8K/16K/32K x 8/9/16/18-bit, has fully asynchronous dual-port SRAM, aimed at the communications market, with a maximum access time of 30ns, supports 16/18-bit devices for byte write/read, supports 3 modes of on-chip arbitration logic: Busy, Interrupt and Semaphore, Busy scheme circuit arbitrates between 2 ports, interrupt mechanism allows port to port communication, full hardware support of semaphore to permit software handshaking between ports, supports multiple pin selection for Master or Slave mode: VIH M/S = for BUSY output flag on master; VIL M/S = for BUSY input flag on slave, can expand the data bus to 32/36 bits or more using master/slave chip select when using more than one device, supports 3.3v and 5v series low power, is compatible and functionally equivalent to IDT or Cypress, and is available in 52-PLCC, 68-PLCC, 84-PLCC, 64-TQFP/STQFP, 80-TQFP, 100-TQFP.

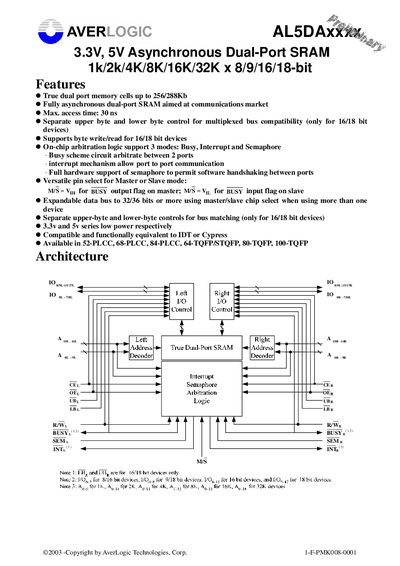

This document is a technical datasheet for the AverLogic ALSDAxxxx and AL5DAxxxx series of fully asynchronous dual-port static RAM (SRAM) devices. Designed primarily for the communications market, these chips support true dual port memory cells with capacities ranging from 1k to 32K x 8/9/16/18-bit.
The maximum access time is 30 ns.
There are 3.3V and 5V series options with low power consumption.
