The ACT-F2M32A is a high-performance chip set consisting of AMD Am29F016 16Mbit (16,777,216 bit) memory die. It features low voltage, low power, high reliability and is suitable for military and aerospace applications.

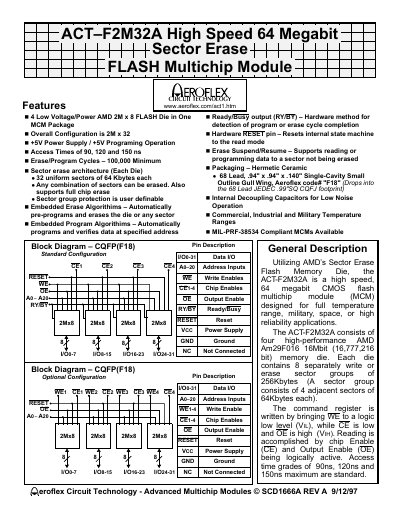

The Aeroflex Circuit Technology ACT-F2M32A is a high-speed, 64 megabit CMOS flash multichip module (MCM) built using four AMD Am29F016 memory dies. It features a sector erase architecture allowing any combination of sectors to be erased independently, along with embedded algorithms for automatic programming and erasing.
The device is packaged in a hermetically sealed ceramic 68-lead CQFP package, supporting operation across commercial, industrial, and military temperature ranges (-55°C to +125°C). It offers access times of 90ns, 120ns, or 150ns and requires no external programming voltage (VPP) for in-system programming.
| Memory Capacity | 64 Megabit (16Mbit x 4) |
|---|---|
| Access Time Grades | 90ns, 120ns, and 150ns |
| Operating Temperature Range (Military) | -55°C to +125°C |
| Power Supply Voltage | +5V (4.5V to 5.5V) |
| Erase/Program Cycles | 100,000 Minimum |
No, it can be programmed in-system using only the +5.0V VCC power supply.
Yes, MIL-PRF-38534 Compliant MCMs are available.
