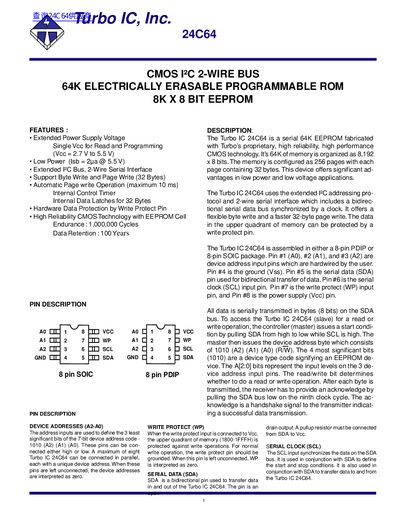

The Turbo IC 24C64 is a serial 64K EEPROM manufactured by Turbo IC using Turbo's proprietary high reliability and high performance CMOS technology.
The Turbo IC 24C64 is a serial EEPROM fabricated using high-reliability CMOS technology. It features an extended I2C bus interface supporting both byte write and page write operations, with automatic page write capability for up to 32 bytes.
Key specifications include a wide operating voltage range of 2.7V to 5.5V, low standby current (2µA at 5.5V), and high endurance rated at 1,000,000 cycles with data retention of 100 years. The device is available in 8-pin PDIP or SOIC packages.
| Memory Capacity | 64K (8,192 x 8 bits) |
|---|---|
| Operating Voltage | 2.7 V to 5.5 V |
| Standby Current | 2 µA @ 5.5 V |
| Endurance | 1,000,000 Cycles |
| Data Retention | 100 Years |
The device operates with a single power supply ranging from 2.7 V to 5.5 V.
The automatic page write operation has a maximum duration of 10 ms.
The EEPROM cell supports an endurance of 1,000,000 cycles.
