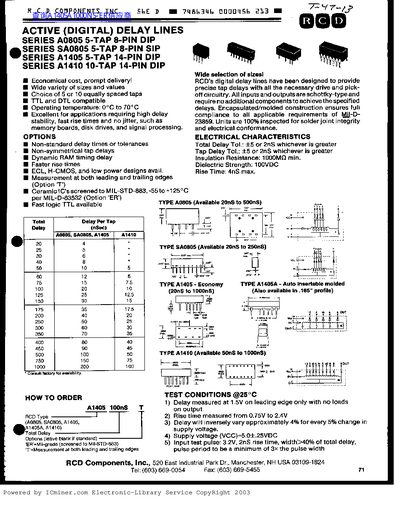

This document provides technical specifications and ordering information for the RCD Components Active Digital Delay Lines. The product line includes Series A0805 (5-tap 8-pin), SA0805 (5-tap 8-pin SIP), A1405 (5-tap 14-pin), and A1410 (10-tap 14-pin) models designed for applications requiring high delay stability, fast rise times, and no jitter. These units are compatible with TTL and DTL logic families.
| Operating Temperature | 0°C to 70°C |
|---|---|
| Total Delay Tolerance | +5 or 2nS whichever is greater |
| Tap Delay Tolerance | +5 or 2nS whichever is greater |
| Insulation Resistance | 1000MΩ min. |
| Dielectric Strength | 100VDC |
| Rise Time | 4nS max. |
The supply voltage (VCC) is 5.0 ± 0.25V.
Yes, options include non-standard delay times or tolerances and non-symmetrical tap delays.
