FCI C-DSUB-0071 D-SUB Crimp Connector Datasheet

This is a document about D - SUB crimp connector.

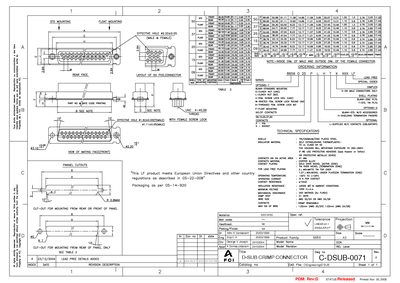

FCI C-DSUB-0071 D-SUB Crimp Connector Datasheet - cover page
Brand
D-SUB
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
177 KB
Published
05 June, 2012
Updated
30 September, 2023
MD5 checksum
6DFED2B613DABD9138A2529E7D62FC3F
PDF
FCI C-DSUB-0071 D-SUB Crimp Connector Datasheet PDF

About this manual

This document is a technical datasheet for the FCI C-DSUB-0071 D-SUB crimp connector. It provides comprehensive dimensional data for various mounting configurations (float, rear, front) and contact arrangements (male & female). The datasheet includes detailed mechanical drawings with specific measurements in millimeters.

What's inside

  • Mounting Dimensions
  • Effective Hole
  • Shell Plating
  • Insulator Material
  • Contacts Material
  • Operating Temperature
  • Packaging Standard
  • Lead Free Details

Specifications

Housing MaterialTin/Cadmium/Zinc Plated Steel
Insulator MaterialSelf Extinguishing Thermoplastic
Maximum Voltage1000 Vrms
Operating Current6 A per contact
Contact Resistance<10mΩ
Mechanical Endurance200 MATINGS (Au FLASH)
Wire SizeAWG 20/24 or AWG 24/28

Frequently asked questions

Is this product lead-free?

Yes, the document includes specific details and notes regarding Lead Free plating.

What is the maximum operating voltage for this connector?

The maximum voltage rating is 1000 Vrms.

How many matings can the housing withstand at a flash rate?

The mechanical endurance is rated for 200 matings.
