The Hercules Series 7000 Industrial Potentiometer is a mechanical device with a standard shaft size of 0.3747 inches. It features optional Neoprene or PTFE seals and is suitable for applications with a continuous rotational angle of 320 degrees. The potentiometer has a standard gear ratio of 1:1, weighs 24 ounces, and is suitable for use in various environmental conditions.

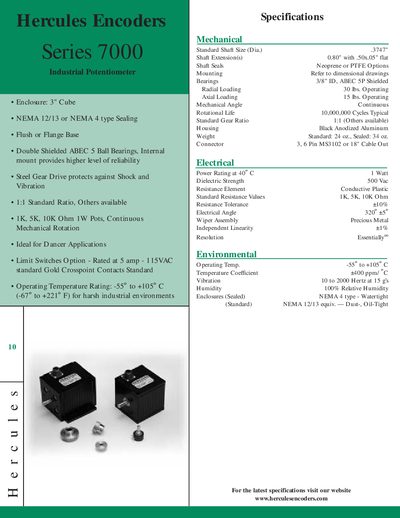

This document provides technical specifications for the Hercules Series 700 encoder. Key features include a robust steel gear drive to protect against shock and vibration, double shielded ABEC 5 ball bearings for high reliability, and enclosures rated NEMA 12/13 or NEMA 4 type sealing.
| Operating Temperature Range | -55° to +105° C (-67° to +221° F) |
|---|---|
| Enclosure Type | NEMA 4 type Sealing or NEMA 12/13 |
| Bearings | Double Shielded ABEC 5 Ball Bearings |
| Resistance Values | 1K, 5K, 10K Ohm |
The standard gear ratio is 1:1, though other ratios are available.
Yes, limit switches are an optional feature rated at 5 amp - 115VAC with standard gold crosspoint contacts.
