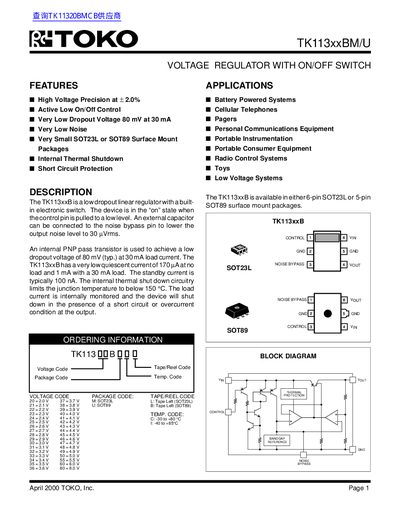

The document describes the features and characteristics of the TK113xxB model, including high voltage precision, low dropout voltage, and low noise.
The document describes the TK113xxB series, a low dropout linear regulator featuring a built-in electronic switch. The device operates in an 'on' state when the control pin is pulled to a low level and includes features such as very low noise, internal thermal shutdown, and short circuit protection.
| Output Voltage Precision | + 2.0% |
|---|---|
| Dropout Voltage (Typ) | 80 mV |
| Quiescent Current (No Load) | 170 uA |
| Standby Current | 100 nA |
The device is in the 'on' state when the control pin is pulled to a low level.
The regulator includes internal thermal shutdown and short circuit protection at the output.
