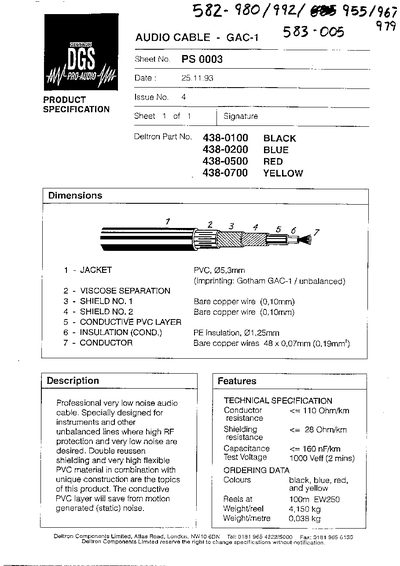

This document provides technical specifications for the Deltron GAC-1 audio cable. It is a professional-grade unbalanced cable designed for instruments and lines requiring high RF protection and very low noise performance.
The cable features double shielding with two layers of bare copper wire and a conductive PVC layer to prevent motion-generated static noise. The construction includes a 7mm diameter PVC jacket, visco separation, PE insulation, and 48 bare copper wires per conductor.
| Conductor Resistance | <= 110 Ohm/km |
|---|---|
| Shielding Resistance | <= 28 Ohm/km |
| Capacitance | <= 160 nF/km |
| Test Voltage | 1000 Veff (2 mins) |
| Jacket Diameter | 7mm |
| Reel Length | 100m |
| Weight per Reel | 4,150 kg |
It is specially designed for instruments and other unbalanced lines where high RF protection and very low noise are desired.
The conductor has a resistance of 110 Ohm/km or less.
The cable is supplied on reels at 100m length.
