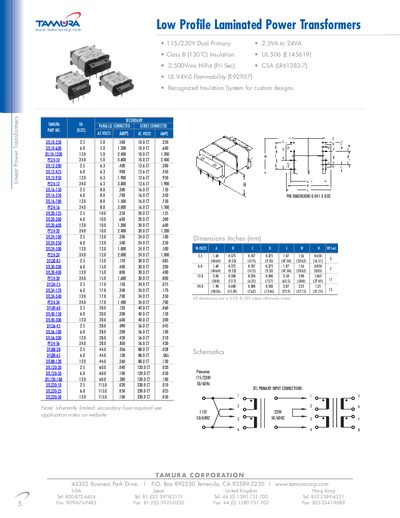

This document introduces the low profile laminated power transformers from TAMURA CORPORATION, including features such as 115/230V dual primary, power range from 2.5VA to 24VA, class B (130˚C) insulation, etc.
This document provides technical specifications for Tamura's line of low profile laminated power transformers. The product range includes various voltage ratings, primarily 115/230V dual primary configurations, with power outputs ranging from 2.5VA to 24VA.
The datasheet details electrical characteristics such as insulation class (Class B), dielectric strength (HiPot), and flammability standards (UL 94V-0). It also includes dimensional data for different models and schematic diagrams showing primary input connections.
| Voltage Rating | 115/230V Dual Primary |
|---|---|
| Power Output Range | 2.5VA to 24VA |
| Insulation Class | Class B (130°C) |
| Dielectric Strength | 2,500Vrms HiPot {Pri:Sec} |
| Flammability Rating | UL 94V-0 |
The transformers feature Class B (130°C) Insulation.
Yes, application notes are available on the website.
