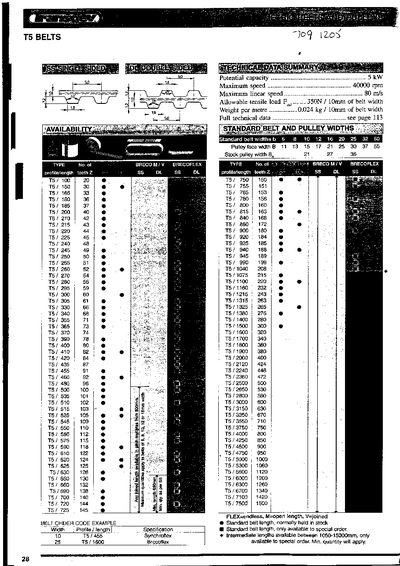

This document provides technical specifications and ordering information for the Brecoflex T5 series of timing belts. It details allowable tensile loads, weight per metre, maximum speed capabilities, and specific tooth shear strength data.
The guide includes a comprehensive table of belt order codes based on width and profile/length combinations (e.g., T5/455). It also provides formulas and tables for calculating the required belt width to transmit peripheral force, torque, or power without exceeding maximum allowable limits.
| Weight per metre | .024 kg / 10mm of belt width |
|---|
The allowable tensile load is 350N per 10mm of belt width.
The weight per metre is 0.024 kg per 10mm of belt width.
The standard stock pulley widths are 24, 27, and 36.
