This data sheet provides information about NOSE ASSEMBLY 99-2511, including type, tool, and manufacturer.

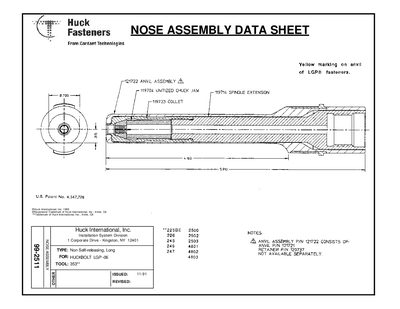

The document serves as a data sheet and service guide for the Nose Assembly (Part Number 121722) used with the Huck International 353 installation system. It details the components of the anvil assembly, including the retainer, which are not available separately.
It provides comprehensive maintenance procedures for both hydraulic and air-powered versions of the tool. Key instructions include safety warnings regarding power disconnection, specific steps for cleaning urethane jaw assemblies using mineral spirits or isopropyl alcohol, and detailed reassembly sequences involving shims, stop nuts, and retaining collars.
| Part Number (Nose Assembly) | 121722 |
|---|---|
| Air Pressure Setting | 90 psi (620 kPa) |
No, the Anvil Assembly P/N 121722 consists of the Anvil P/N 121721 and Retainer P/N 120737, which are not available separately.
