The document is about the introduction of GALEP-4 series programmers. It is a professional field programmer and supports EPROMs, EEPROMs, FLASH EPROMs, serial EEPROMs, Microcontrollers, GALs and PALCEs. It can read and program

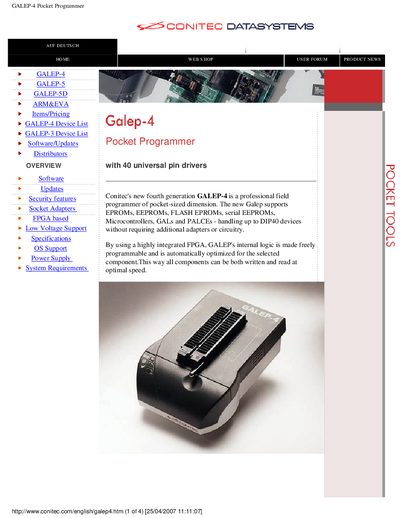

The Conitec GALEP-4 is a pocket-sized professional field programmer designed for reading and programming various electronic components. It features 40 separate universal pin drivers capable of handling DIP40 devices, including EPROMs, FLASH EPROMs, serial EEPROMs, GALs, PALCEs, and microcontrollers like Atmel AVR and PICmicro.
The device supports low-voltage operation down to 1.3 volts using internal level-shifters and comparators. It offers dual power options via AC adapter or six rechargeable NiMH batteries for up to 8 hours of continuous field use. The GALEP-4 includes an integrated editor supporting multiple file formats and allows software updates for new devices. This manual is written in German.
| Universal Pin Drivers | 40 universal pin drivers |
|---|---|
| Maximum Device Size | up to DIP40 devices |
| Low Voltage Support | down to 1.3 volts |
| Voltage Measurement Range | 0 to 25 volts with a precision of 100 mV |
| Battery Operation Time | up to 8 hours |
| Supported File Formats | Hex, Jedec and Binary file formats |
The GALEP-4 handles devices up to DIP40.
It uses dual power: an AC adapter or six rechargeable NiMH batteries (AAA).
