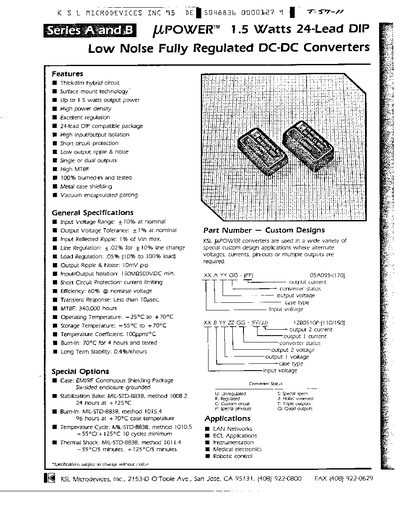

The document describes the KSL LPOWER series of Low Noise Fully Regulated DC-DC Converters manufactured by KSL Microdevices Inc. These devices feature thick-film hybrid circuit technology and surface mount compatibility, providing high power density with excellent regulation. The converters are available in single or dual output configurations within a 24-lead DIP package.
| Output Power | Up to 1.5 watts |
|---|---|
| Input Voltage Range Regulation | +/- 10% at nominal |
| Output Voltage Tolerance | +/- 1% |
| Line Regulation | +/- 0.02% |
| Load Regulation | 0.05% |
| Output Ripple & Noise | 10mV p-p |
| Input/Output Isolation | 50MΩ @ 500VDC min. |
| Short Circuit Protection | Current limiting |
| Efficiency | 60% @ nominal voltage |
| MTBF | 340,000 hours |
| Operating Temperature Range | -25°C to +70°C |
The converters provide up to 1.5 watts output power.
Yes, the devices include current limiting for short circuit protection.
The units operate from -25°C to +70°C and can be stored from -55°C to +70°C.
