Jade Microsystems JMS2206 ATMEGA128 Development Board Data Sheet

JADE Microsystems JMS2206 ATMEGA128 DEVELOPMENT BOARD is a development board based on ATMEL ATMEGA128, with 4MHz crystal, 8-way connector, 10-way IDC connector, 5V linear regulator, LED DC indicator

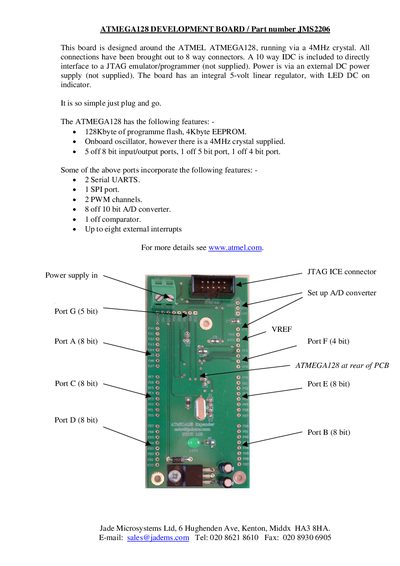

Jade Microsystems JMS2206 ATMEGA128 Development Board Data Sheet - cover page
Brand
JADE
Category
microcontrollers
Document type
Product Leaflet
Language
English
Pages
3
File format
PDF
File size
208 KB
Published
05 June, 2012
Updated
30 September, 2023
MD5 checksum
73F3A95EF51F54D8A339152EFF494CDA
PDF
Jade Microsystems JMS2206 ATMEGA128 Development Board Data Sheet PDF

About this manual

The document describes the Jade Microsystems JMS2206 development board, which is designed around an ATMEL ATMEGA128 microcontroller running via a 4MHz crystal. The board features all connections brought out to 8-way connectors and includes a 10-way IDC connector for direct interface with a JTAG emulator or programmer.

Key specifications of the included ATMEGA128 chip include 128Kbyte of programme flash, 4Kbyte EEPROM, five 8-bit input/output ports (plus one 5-bit and one 4-bit port), two serial UARTs, one SPI port, two PWM channels, eight 10-bit A/D converters, and a comparator. The board also features an integral 5-volt linear regulator with an LED DC on indicator.

What's inside

  • Features
  • Power supply
  • Connectors
  • Microcontroller specifications
  • Ports
  • JTAG interface
  • Schematic details

Specifications

MicrocontrollerATMEL ATMEGA128
Crystal frequency4MHz
Flash memory128Kbyte
EEPROM4Kbyte
Voltage regulator5-volt linear

Frequently asked questions

What is the part number of this development board?

The part number for this board is JMS2206.

Does the board include a programmer?

No, the JTAG emulator/programmer is not supplied with the board.

What power supply requirements does the board have?

The board requires an external DC power supply, not supplied separately.
