MPS4452S is a proximity switch produced by Comus Group of Companies. Its features are the switching voltage of 100 Vac, the switching current of 0.5 A, the switching capacity of 6 VA, the contact resistance of 150 mΩ, the switching distance of 5 mm, the operating temperature of -5°C to +70°C, and the storage temperature of -35°C to +85°C.

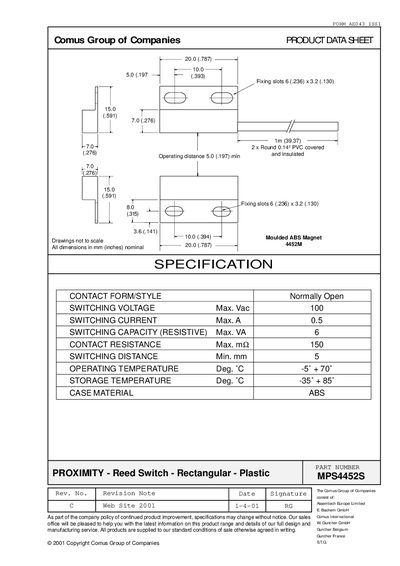

This document is a product datasheet for the Comus Group of Companies model MPS4452S. It describes a normally open (NO) proximity reed switch with a rectangular plastic case made of ABS material.
The sheet provides key technical specifications including maximum switching voltage, current, and capacity, as well as operating and storage temperature ranges. Physical dimensions for the device are also listed in both metric and imperial units.
| Contact Form/Style | Normally Open |
|---|---|
| Switching Voltage (Max) | Vac 100 |
| Switching Current (Max) | A 0.5 |
| Switching Capacity (Resistive) (Max) | VA 6 |
| Contact Resistance (Max) | mQ 150 |
| Switching Distance (Min) | mm 5 |
| Operating Temperature Range | -5°+70° C |
| Storage Temperature Range | -35° + 85° C |
| Case Material | ABS |
