The document provides mechanical data, electronic characteristics, and pin assignment information for the BO6464A product. The BO6464A is an FSTN Transflective LCD with a COG package. It features a built-in driver PCF8548, serial I2C data bus, and a 1/64 duty cycle. The product operates at a supply voltage of +3V and has a good viewing area and dot size.

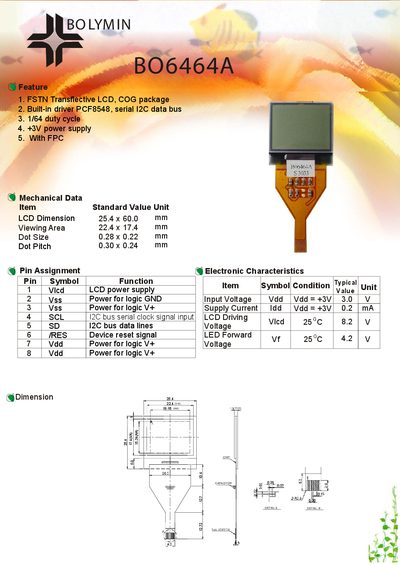

This document is a datasheet for the BOLYMIN BO6464A, an STN Transflective Liquid Crystal Display (LCD) featuring a Chip On Glass (COG) package. The device includes a built-in PCF8548 controller and utilizes a serial I2C data bus for communication.
The module operates with a +3V power supply and features a 1/64 duty cycle. Key mechanical dimensions include an LCD size of 25.4 x 60.0 mm and a viewing area of 22.4 x 17.4 mm, with a dot pitch of 0.30 x 0.24 mm.
| LCD Dimension | 25.4 x 60.0 mm |
|---|---|
| Viewing Area | 22.4x 17.4 mm |
| Dot Pitch | 0.30 x 0.24 mm |
| Power Supply Voltage | +3V |
| Supply Current (Typical) | 0.2 mA |
