APT30S20B 200V 45A is a high voltage Schottky diode produced by Advanced Power. It features low losses, low noise switching, cooler operation, higher reliability systems, increased system power density, ultrafast recovery times, soft recovery characteristics, popular TO-247 package or surface mounted D3PAK package, low forward voltage, high blocking voltage, low leakage current.
The APT30S20B is a high‑voltage Schottky diode offered in TO‑247 and DPAK packages. It features ultrafast recovery, low forward loss, and high blocking voltage, making it suitable for switch‑mode power supplies, inverters, UPS, and other high‑power applications.

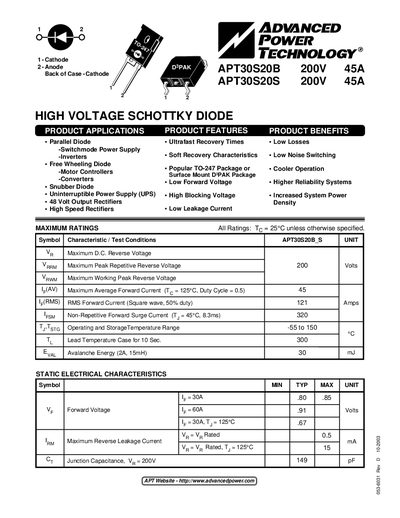

The datasheet provides maximum ratings, static and dynamic electrical characteristics, thermal and mechanical data, as well as typical performance curves and test circuit diagrams to aid designers in selecting and applying the device.
| RMS Forward Current (50% duty) | 121 A |
|---|---|
| Operating Temperature Range | -55 °C to 150 °C |
| Avalanche Energy (2 µA, 15 µH) | 30 mJ |
It operates from –55 °C to 150 °C.
