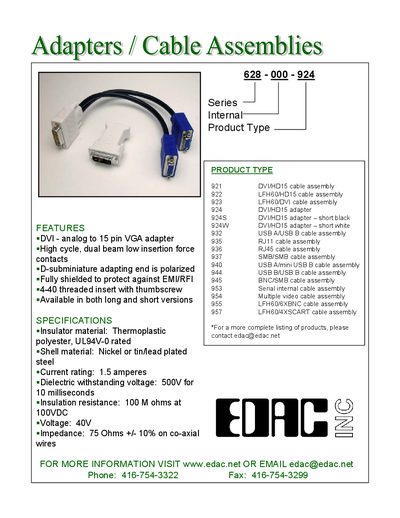

The document describes the features and characteristics of a DVI/HD15 adapter, including analog to 15 pin VGA adapter, high cycle, dual beam low insertion force contacts, polarized D-subminiature adapting end, fully shielded to protect against EMI/RFI, etc.
This document lists the various adapters and cable assemblies offered by EDAC, including DVI/HD15, LFH60, USB, RJ45, BNC, and other connector types. Each product is identified by a part number (e.g., 921, 922, 924) and a brief description.
Key specifications are provided for the generic cable assemblies, such as insulation material, shell material, current rating, dielectric voltage, insulation resistance, and impedance. Contact information for further details is also included.
| Shell material | Nickel or tin/lead plated steel |
|---|---|
| Current rating | 1.5 amperes |
| Dielectric withstanding voltage | 500V for 10 milliseconds |
| Insulation resistance | 100 M ohms at 100VDC |
| Impedance | 75 Ohms +/- 10% on coaxial wires |
The current rating is 1.5 amperes.
They can withstand 500 V for 10 milliseconds.
Visit www.edac.net or email [email protected] for more information.
