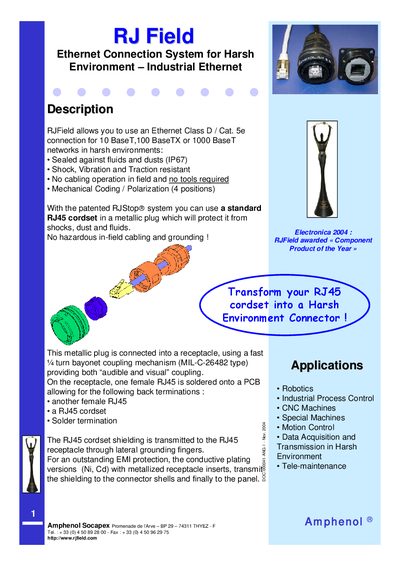

RJField is a harsh environment connector system from Amphenol. It can convert RJ45 cordsets into IP67 rated connector.
The RJField system converts a standard RJ45 cordset into a rugged connector suitable for 10 BaseT, 100 BaseTX or 1000 BaseT networks in harsh conditions. It features a metallic plug with a ¼‑turn bayonet coupling, four mechanical coding positions, and optional metal or plastic gland receptacles.
Environmental protection includes IP67 sealing, shock and vibration resistance, UL94 V0 fire‑retardant rating, and operation from –40 °C to +85 °C. The system supports various back‑terminations and offers a range of part numbers for different plug and receptacle configurations.
| Environmental sealing | IP67 |
|---|---|
| Supported data rates | 10 BaseT, 100 BaseTX, 1000 BaseT |
| Shock resistance | IK06 (250 g drop from 40 cm) |
| Temperature range | -40 °C to +85 °C |
| Mating cycles | 500 min |
The RJField connector is sealed to IP67, protecting it against fluids and dust.
It supports 10 BaseT, 100 BaseTX, and 1000 BaseT Ethernet networks.
The plug uses a ¼‑turn bayonet coupling that provides audible and visual feedback.
It meets IK06 shock resistance, tested with a 250 g weight dropped from 40 cm.
