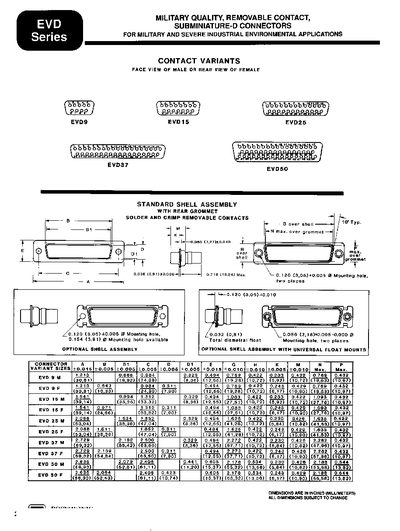

The EVD series provides removable contact Subminiature‑D connectors built to meet military‑grade quality and severe industrial environmental requirements. They feature precision‑machined brass or high‑tensile alloy contacts, fluorosilicone grommets, and optional sealing accessories.
Technical characteristics include gold‑over‑copper plating, 7.5 A nominal contact current, 300 V rms working voltage, and operation from –55 °C to +125 °C. The connectors comply with MIL‑C‑24308 and MIL‑C‑39029 standards and are rated for at least 500 mating cycles.
| Contact Current | 7.5 A nominal |
|---|---|
| Initial Contact Resistance | 0.005 Ω max |
| Temperature Range | ‑55 °C to +125 °C |
| Contact Retention | 9 lb (40 N) |
| Plating Thickness | 1.25 µm gold over copper |
| Mating Cycles | ≥ 500 per IEC 512‑5 |
| MIL Compatibility | MIL‑C‑24308, MIL‑C‑39029 |
The connectors are compatible with MIL‑C‑24308 and MIL‑C‑39029.
The connectors are rated for a nominal contact current of 7.5 A.
They operate from –55 °C up to +125 °C.
They are rated for at least 500 insertion/removal cycles per IEC 512‑5.
