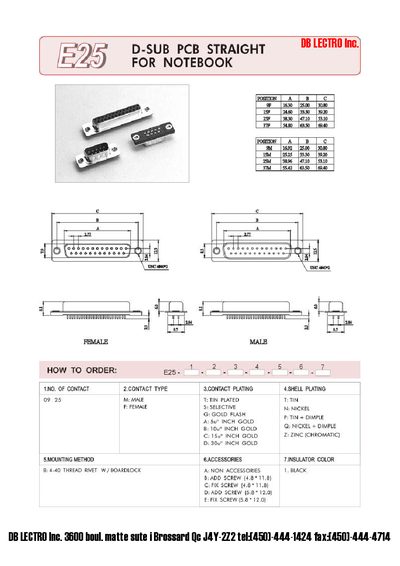

The document describes Lectro's D‑SUB straight PCB connector, available in male and female versions for notebook integration. It lists contact types, plating options, and mounting methods.
Ordering information is provided, including a phone number (450‑444‑1424) and fax (450‑444‑4714) for Lectro Inc. in Brossard, along with accessory options such as tin‑insulated colors and various screw sizes.
| Mounting method | 4-40 THREAD RIVET W/ BOARDLOCK |
|---|---|
| Contact plating | TIN PLATED |
| Shell plating | NICKEL |
| Accessory color | TIN INSULATOR |
The connector is mounted using a 4‑40 thread rivet with board lock.
