The PC4002-C is a 4-line 20-column LCD module that provides STN, TN, and FSTN displays with LED and EL backlights.

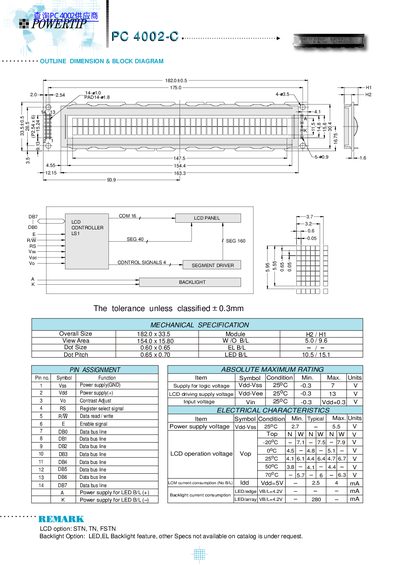

The PC 4002-C is an LCD module offered by ROWERTIP. This datasheet lists its mechanical specifications, pin functions, and electrical limits for designers and integrators.
Key data include overall size, view area, dot size, dot pitch, power‑supply voltage ranges, and available backlight options (LED or EL). The document also details pin assignments for control and data signals.
| Overall Size | 182.0 x 33.5 mm |
|---|---|
| View Area | 154.0 x 15.80 mm |
| Dot Size | 0.60 x 0.65 mm |
| Dot Pitch | 0.65 x 0.70 mm |
| Backlight Current (LED) | 280 mA |
| Backlight Options | LED, EL |
| LCD Options | STN, TN, FSTN |
It can be equipped with either an LED or an EL (electroluminescent) backlight.
The PC 4002‑C is offered in STN, TN, and FSTN LCD types.
