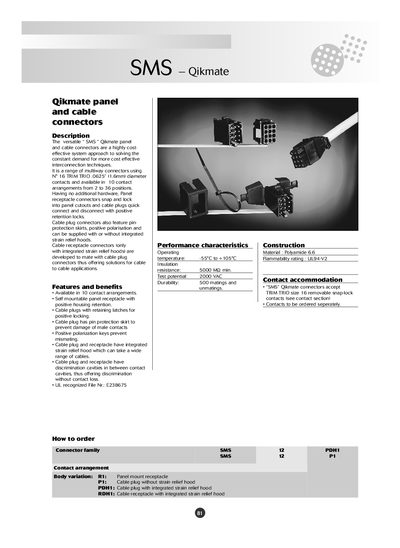

SMS – Qikmate is a series of multiway connectors using N° 16 TRIM TRIO .0625” (1.6mm) diameter contacts, available in 10 contact arrangements from 2 to 36 positions.
The Qikmate system offers a versatile range of multi‑way panel and cable connectors using 1.6 mm diameter contacts in 10 contact arrangements from 2 to 36 positions. Connectors snap into panel cutouts or cable plugs with positive retention locks, pin‑protection skirts, and optional strain‑relief hoods.
The handbook lists contact configurations for panel‑mount receptacles, cable plugs, and cable receptacles, provides an inter‑mateability chart, and details accessories such as pin‑protection shrouds and strain‑relief hoods. Technical data, material specifications, and ordering information are also included.
| Operating material | Polyamide 6.6 |
|---|---|
| Temperature range | -55 °C to +105 °C |
| Flammability rating | UL94‑V2 |
| Insulation resistance | 5000 MΩ min. |
| Test potential | 2000 VAC |
| Durability (mating cycles) | 500 matings |
| UL file number | E238675 |
They are made of Polyamide 6.6.
The connectors operate from –55 °C to +105 °C.
They are rated for 500 mating cycles.
The insulation resistance is at least 5000 MΩ.
