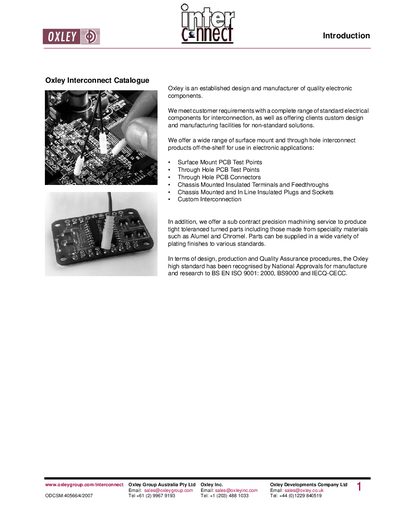

Oxley is a well-established design and manufacturer of quality electronic components. We offer a wide range of standard electrical components and custom design and manufacturing facilities to meet customer needs.
Oxley designs and manufactures a wide range of electronic interconnection components, including surface‑mount test points, through‑hole connectors, chassis‑mounted terminals and custom‑machined parts. The catalogue provides specifications, material options and assembly tools for each product family.
Key families include the SMOX® surface‑mount test points with low‑contact resistance, the KINKY PIN plated‑through‑hole connectors with a unique kinked retention mechanism, and the BARB CONE LOCK® plugs and sockets offering high voltage and current ratings. Detailed mechanical dimensions, material finishes and packaging options are provided for designers and assemblers.
| SMOX Maximum Contact Resistance | 2 mΩ |
|---|---|
| SMOX Maximum Angular Displacement | +30° |
| SMOX Socket Insulation | ≥10 MΩ |
| SMOX Typical Retention Force | 0.2 kg |
| SMOX Current for 10 °C Rise | 3 A |
| SMOX Climatic Category | -55 °C to +125 °C, 56 days damp heat |
| BARB CONE LOCK Current Rating | 5 A |
| BARB CONE LOCK Rated Voltage | 4 kV DC |
| BARB CONE LOCK Axial Pull Resistance | 15 kgf (30 lbf) |
| BARB CONE LOCK Capacitance to Chassis | 2.0 pF (max) |
The SMOX test point requires a minimum pad size of only 2 mm diameter.
The typical retention force is about 0.2 kg.
BARB CONE LOCK plugs and sockets are rated for 5 A.
