Sure‑Seal Connectors Handbook

Sure-Seal L is the lowest priced, smallest size, and most reliable waterproof connector in the Sure-Seal series

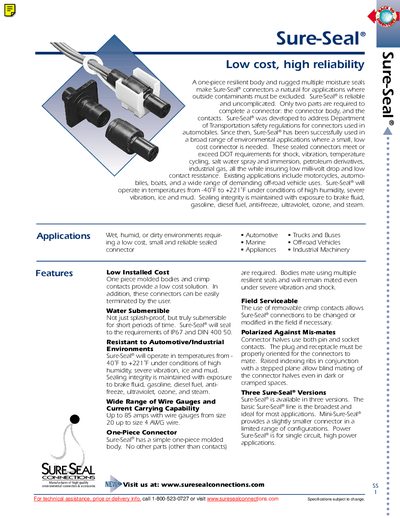

Sure‑Seal Connectors Handbook - cover page
Brand
SURE
Category
Other device
Document type
Product Leaflet
Language
English
Pages
3
File format
PDF
File size
189 KB
Published
04 June, 2012
Updated
01 October, 2023
MD5 checksum
A77C0E075758E0A4D6D847303FD41A8C
PDF
Sure‑Seal Connectors Handbook PDF

About this manual

Sure‑Seal® connectors are one‑piece molded, rugged, and moisture‑sealed for automotive, marine, and off‑road applications. They meet DOT requirements and are rated for IP67 protection, operating from –40°F to +221°F.

The handbook provides technical specifications, material and finish options, electrical and mechanical data, and a step‑by‑step guide for selecting the appropriate series, circuit count, and accessories.

What's inside

  • Features
  • Applications
  • Connector Versions
  • Materials & Finishes
  • Electrical Data
  • Mechanical Data
  • Selection Guide

Specifications

Operating Voltage400 Vac maximum
Dielectric Withstanding Voltage1,200 Vac at sea level
Current Rating (Sure‑Seal)15 A
Current Rating (Mini‑Sure‑Seal)8 A
Current Rating (Power‑Sure‑Seal)85 A
Contact Resistance10 mΩ maximum
Insulation Resistance100 MΩ minimum
Operating Temperature-40°F to +221°F
Sealing RatingIP67 (DIN 40050)
Mating Life50 cycles minimum

Frequently asked questions

What temperature range can Sure‑Seal connectors operate in?

They operate from –40°F to +221°F.

What is the maximum current rating for Power Sure‑Seal connectors?

Power Sure‑Seal connectors are rated for up to 85 A.

What sealing protection do Sure‑Seal connectors provide?

They meet IP67 and DIN 40050 standards, suitable for sub‑mersion.

How many mating cycles are guaranteed for the connectors?

A minimum of 50 mating cycles is guaranteed.
