SML70020 Series is a series of rectangular bicolor LED products with forward voltage VF of 1.9 to 2.0 V, maximum forward current IF of 10 mA, and peak wavelength λP of 630 to 560 nm.

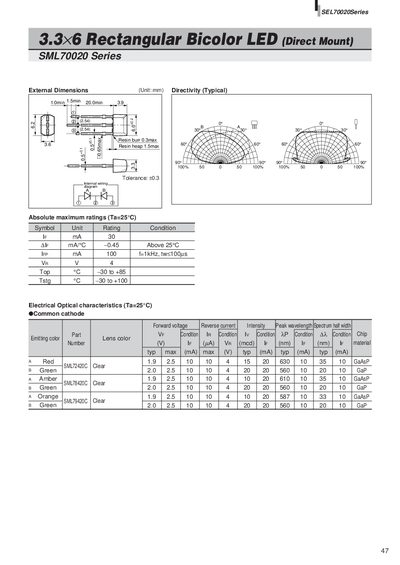

The SML70020 series provides a 3.3 × 6 mm rectangular bicolor LED in a direct‑mount package. The sheet lists external dimensions, directivity, and tolerance values for the device.
Key electrical specifications include a maximum forward current of 30 mA, reverse voltage rating of 4 V, and operating temperature range from –30 °C to +85 °C. Optical data give peak wavelengths of 630 nm (red), 560 nm (green), and 610 nm (amber) with typical forward voltages and intensities for each color.
| Maximum forward current (IF) | 30 mA |
|---|---|
| Operating temperature range | -30 °C to +85 °C |
The maximum forward current is 30 mA.
The LED operates from –30 °C up to +85 °C.
