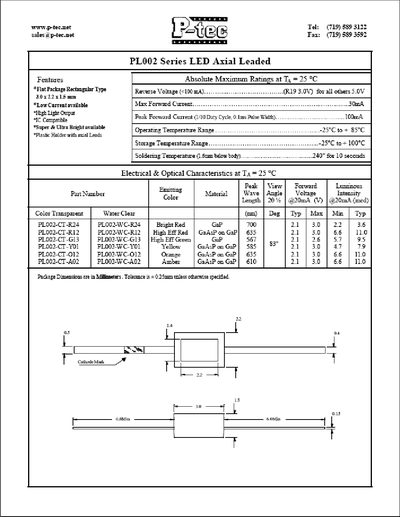

The PL002 series LED axial leaded devices from P‑tec are offered in several standard colors such as Red, Green, Yellow, Orange and Amber. The datasheet lists absolute maximum ratings, operating and storage temperature ranges, and recommended soldering conditions.
Key electrical and optical parameters are provided for each color, including forward voltage, forward current, luminous intensity and wavelength. Package dimensions and tolerances are also specified, along with a cathode marking guide.
| Soldering Temperature | 240 °C for 10 seconds |
|---|---|
| Reverse Voltage | <100 mA |
A soldering temperature of 240 °C for about 10 seconds is recommended.
