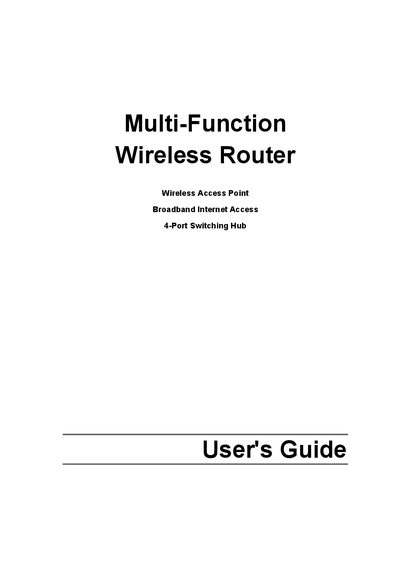

This document introduces a multi-function wireless router that features wireless router, wireless access point, broadband internet access, and 4-port switching hub.
This guide introduces the Multi-Function Wireless Router, describing its broadband Internet sharing, 4‑port switching hub, and 802.11b wireless access point. It covers package contents, physical details, LED indicators, and basic installation steps.
The manual then explains PC configuration for Windows, Mac, Linux and other Unix systems, detailed operation status screens, advanced features such as virtual servers, DMZ, URL filtering, VPN pass‑through, and security settings. Appendices include troubleshooting tips and a full specification sheet.
| Dimensions | 189 mm (W) × 122 mm (D) × 27 mm (H) |
|---|---|
| Operating Temperature | 0 °C to 40 °C |
| Network Interface | 4 × 10/100BaseT LAN ports, 1 × 10/100BaseT WAN port |
| Wireless Standard | IEEE 802.11b (DSSS) |
| Data Rate | 11/5.5/2/1 Mbps |
| Coverage Area | Indoors 60 m @11 Mbps, Outdoors 120 m @11 Mbps |
| WEP Support | 64‑bit and 128‑bit |
| Output Power | 13 dBm (typical) |
| Receiver Sensitivity | -80 dBm (minimum) |
The router provides four 10/100BaseT LAN ports and one 10/100BaseT WAN port.
It complies with the IEEE 802.11b (DSSS) wireless LAN standard.
Yes, the router supports WEP with 64‑bit and 128‑bit key sizes.
