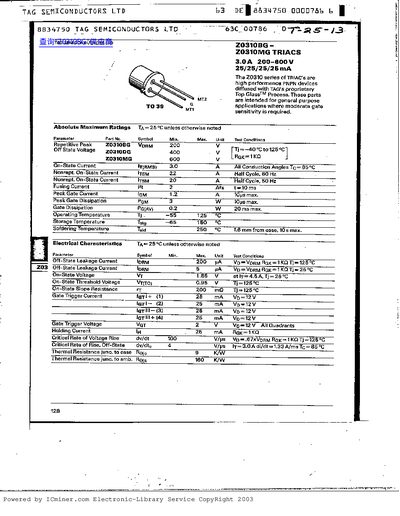

The Z0310 series TRIACs from TAG Semiconductors are high‑performance PNPN devices fabricated with the proprietary Top Glass™ process. They are intended for general‑purpose applications where moderate gate sensitivity is required.
Key electrical characteristics include a continuous on‑state RMS current of 3.0 A, off‑state voltage ratings of 200 V (Z0310BG) and 600 V (Z0310MG), a gate trigger voltage of about 2 V, and a dv/dt rating of 100 V/µs. The devices operate from –55 °C to 125 °C and can be soldered at up to 250 °C.
| On‑State Current (RMS) | 3.0 A |
|---|---|
| Off‑State Voltage (Z0310BG) | 200 V |
| Off‑State Voltage (Z0310MG) | 600 V |
| On‑State Voltage (V_R) | 1.85 V at I=4.5 A |
| Gate Trigger Voltage (V_GT) | 2 V (V_P=12 V) |
| Holding Current (I_H) | 26 mA |
| dv/dt (Rate of Voltage Rise) | 100 V/µs |
| Operating Temperature Range | -55 °C to 125 °C |
| Storage Temperature Range | -65 °C to 160 °C |
| Soldering Temperature | 250 °C (max 10 s) |
| Peak Gate Current | 1.2 A (10 µs) |
| Peak Gate Dissipation | 3 W (70 µs) |
| Thermal Resistance (junction‑to‑case) | 9 K/W |
| Thermal Resistance (junction‑to‑ambient) | 180 K/W |
The Z0310 TRIAC can conduct a continuous RMS on‑state current of 3.0 A.
A gate trigger voltage of about 2 V is required (with V_P = 12 V).
The device can handle a voltage rise rate of up to 100 V/µs.
