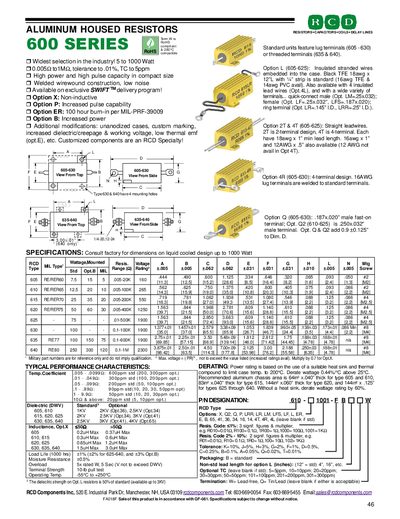

600 SERIES ALUMINUM HOUSED RESISTORS products have the following features: The widest selection in the industry - 0.005Ω to 1MΩ, accuracy to 0.01%, TC to 5ppm, high power and high pulse capacity, compact size, low noise, available on exclusive SWIFT TM delivery program.
The 600 Series aluminum housed resistors from RCD Components offer a wide selection of power ratings from 5 W to 1000 W and multiple terminal options, including lug, threaded, quick‑connect, and non‑inductive designs. Various options such as insulated stranded wires, increased pulse capability, and custom markings allow customization for specific applications.
Key specifications include tight tolerance of .01 %, temperature coefficient as low as 5 ppm, operating temperature range from –55 °C to +250 °C, and a derating rule of 0.44 % per °C above 25 °C. The resistors are RoHS compliant and available through the SWIFT™ delivery program.
| Power rating | 5 to 1000 W |
|---|---|
| Tolerance | .01 % |
| Temperature coefficient | 5 ppm |
| Operating temperature | -55 °C to +250 °C |
| Derating | 0.44 %/°C above 25 °C |
Power rating is derated by 0.44 % per degree Celsius above 25 °C.
The temperature coefficient can be as low as 5 ppm.
