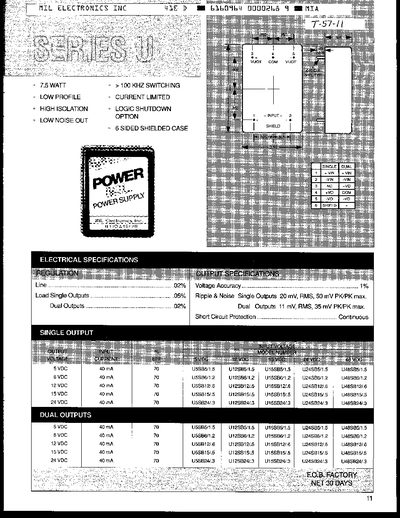

The Series U from MIL Electronics is a low‑profile, current‑limited switching device with high isolation and logic shutdown capability. It operates at 100 kHz and offers low‑noise output options in a six‑sided shielded case.
The datasheet lists detailed electrical specifications, including ripple and noise limits for single and dual outputs, a range of output voltage options, and continuous short‑circuit protection.
| Switching Frequency | 100 kHz |
|---|---|
| Profile | Low profile current limited |
| Isolation | High isolation logic shutdown |
| Single Output Ripple & Noise | 20 mV RMS, 50 mV PK/PK max |
| Dual Output Ripple & Noise | 11 mV RMS, 35 mV PK/PK max |
| Short‑Circuit Protection | Continuous |
It operates at a switching frequency of 100 kHz.
Single outputs have a ripple of 20 mV RMS and a maximum of 50 mV peak‑to‑peak.
Yes, it provides continuous short‑circuit protection.
