FPB series products have high dv/dt, low self-inductance and low ESR characteristics, which are widely used in noise suppression, electronic ballasts and RC networks.
The FPB series are impregnated polypropylene film capacitors with aluminum foil electrodes, designed for low self‑inductance, low ESR, and high dielectric strength. They are suitable for applications such as IB noise suppression in AC networks, electronic ballasts, and custom capacitor solutions.

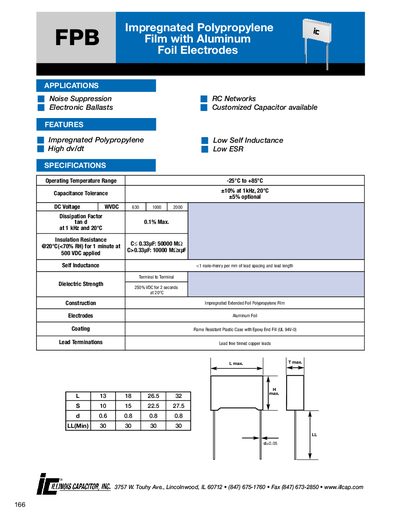

The document provides specifications, physical dimensions, and a standard parts listing for various voltage ratings (630 V, 1000 V, 2000 V). Contact Illinois Capacitor for customized orders and further technical support.
| Operating Temperature Range | -25°C to +85°C |
|---|---|
| Capacitance Tolerance | ±10% at nominal |
| Self Inductance | <1 nH per mm of lead spacing |
| Dielectric Strength | 250% VDC for 2 seconds at 20°C |
The capacitors operate from –25 °C up to +85 °C.
The self‑inductance is less than 1 nano‑Henry per millimeter of lead spacing.
