This document provides detailed information on a series of USB and BI-DIRECTIONAL CABLE products, including product name, model, retail price, wholesale price, length, color, transmission speed, etc.

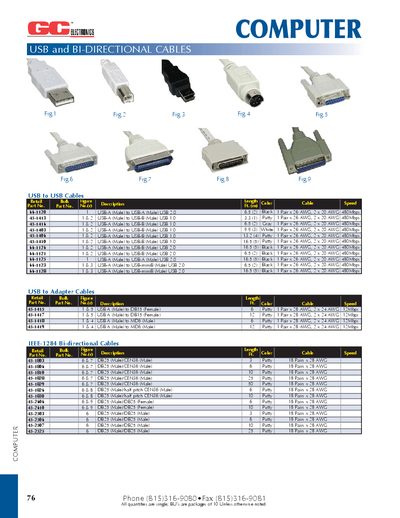

This handbook lists a variety of USB cables and IEEE‑1284 bi‑directional cables offered by Computer. Each entry includes retail and bulk part numbers, figure references, length, color, cable gauge and supported data speed.
The document covers USB‑to‑USB cables (e.g., USB‑A to USB‑A, USB‑A to USB‑B, USB‑A to USB‑miniB), USB‑to‑adapter cables (e.g., USB‑A to DB15, USB‑A to MD6) and IEEE‑1284 bi‑directional cables with detailed specifications for each type.
| Cable Speed (USB‑A to USB‑A) | USB 2.0 480Mbps |
|---|---|
| Cable Color (USB‑A to USB‑A) | Black, Putty, Gray, White |
| Conductor Gauge (USB‑A to USB‑A) | 1 Pair x 26 AWG |
| Conductor Gauge (IEEE‑1284) | 18 Pairs x 28 AWG |
The handbook lists speeds ranging from USB 1.0 (12 Mbps) to USB 2.0 (480 Mbps).
Available colors are Black, Putty, Gray and White.
The IEEE‑1284 bi‑directional cables use 18 pairs of 28 AWG conductors.
