illcap AFB series aluminum polymer electrolytic capacitors have the characteristics of low impedance, high current, high frequency, long life, high temperature
The AFB series of radial lead aluminum polymer electrolytic capacitors offers low impedance, long life, high ripple current capability, and operation at high frequencies. Key features include high current handling, high temperature tolerance, and RoHS compliance.

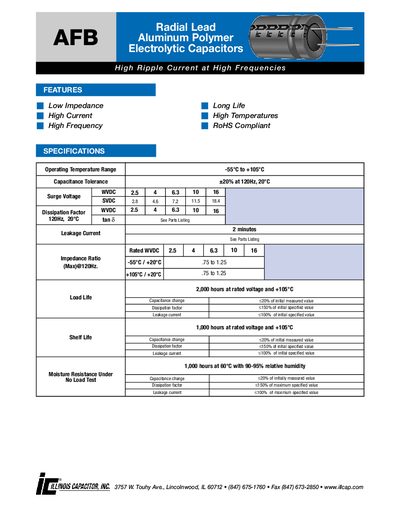

The document provides physical dimensions for each capacitance value, a comprehensive standard part listing with part numbers, ESR, ripple current, and size, as well as detailed electrical specifications such as temperature range, capacitance tolerance, rated voltage, impedance ratio, and leakage current limits.
| Operating Temperature Range | -55°C to +105°C |
|---|---|
| Capacitance Tolerance | +20% at 120Hz, 20°C |
| Rated WVDC | 2.5 V, 4 V, 6.3 V, 10 V, 16 V |
| Impedance Ratio (Max) @120Hz | 75 to 1.25 |
| Leakage Current Limit | <100% of initial specified value |
| Physical Size (100 µF) | 8 mm × 8 mm |
The capacitors operate from –55 °C up to +105 °C.
Capacitance tolerance is +20 % at 120 Hz, measured at 20 °C.
Rated WVDC values are 2.5 V, 4 V, 6.3 V, 10 V, and 16 V.
A 100 µF capacitor measures 8 mm × 8 mm.
