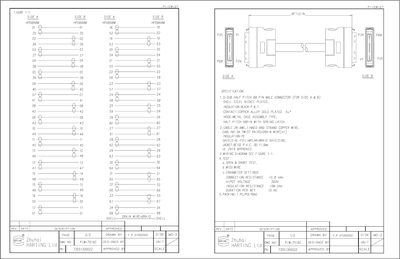

The PIW-7516C is a 68‑pin half‑pitch D‑sub male connector designed for side‑A and side‑B applications. The document provides detailed specifications, including shell material, contact plating, insulation, and cable construction, as well as a wiring diagram and test procedures.
Key features include a steel nickel‑plated shell, gold‑plated copper alloy contacts, a metal case hood, and a cable with 34 twisted pairs, drain wire, PE insulation, and aluminum‑foil/Mylar/braid shielding. Electrical tests such as connection resistance, hipot voltage, and insulation resistance are also specified.
| Connector type | D‑SUB HALF PITCH 68 PIN MALE CONNECTOR |
|---|---|
| Shell material | Steel nickel plated |
| Insulation (connector) | Black P.B.T. |
| Contact material | Copper alloy gold plated |
| Hood type | Metal case assembly |
| Cable conductor | 28 AWG tinned stranded copper wire |
| Cable pairs | 34 twist pairs + drain wire |
| Cable insulation | PE |
| Cable shielding | Al‑foil + Mylar + braid |
| Cable jacket | Beige PVC |
| Connection resistance | < 0.8 Ω |
| Hipot test voltage | 300 V |
| Insulation resistance | > 5 MΩ |
| Duration per net | 10 ms |
| Packing | 1 piece per polybag |
The connection resistance is less than 0.8 Ω.
A hipot test voltage of 300 V is specified.
It has 68 pins.
