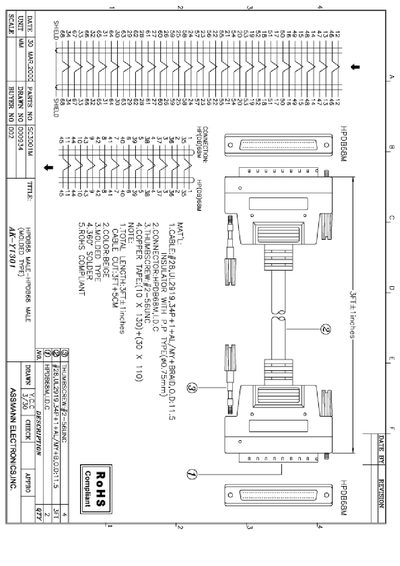

This one‑page leaflet provides the drawing reference, part number, and key specifications for the AK‑Y1301 connector assembly from Assmann Electronics. It lists the cable type, connector model, insulator dimensions, thumb‑screw size, and total length.
The document also includes material compliance notes (RoHS) and manufacturing details such as scale, buyer number, and drawing number, useful for engineers and procurement staff.
| Cable type | #28, UL29 19,34P+1+AL/MY+BRAID, O.0:1 1.5 |
|---|---|
| Insulator type | P,P type (#0,75mm) |
| Connector model | HPDSBAM,|.D.c |
| Thumb screw size | #2—56UNC |
| Total length | 3FT+ inches |
The total length is 3 FT plus a few inches.
