CLV0700E is a low cost high performance VCO produced by Z-Communications. The product is mainly used in VSAT Modems, Basestation Digital Radios and other fields. The frequency range is 680-720MHz, the tuning voltage is 0.5-4.5Vdc, the harmonic suppression is 29dBc, and the push-pull is 14dB Return Loss for any phase.

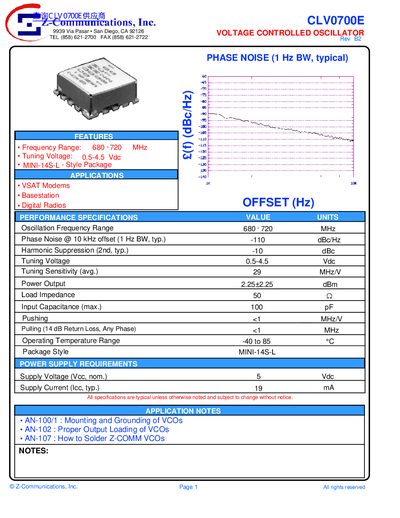

The CLV0700E is a voltage‑controlled oscillator (VCO) designed for VSAT modems, base‑station digital radios and other RF applications. It offers a compact MINI‑14S‑L package, low phase noise, and a wide tuning voltage range of 0.5‑4.5 Vdc.
Key specifications include a 680‑720 MHz frequency range, -110 dBc/Hz phase noise at 10 kHz offset, and 2.25 dBm output power. The device operates from -40 °C to 85 °C and requires a 5 V supply with typical 19 mA current draw. Application notes provide guidance on mounting, grounding, and output loading.
| Frequency Range | 680-720 MHz |
|---|---|
| Phase Noise @ 10 kHz offset | -110 dBc/Hz |
| Harmonic Suppression (2nd, typ.) | -10 dBc |
| Tuning Voltage | 0.5-4.5 Vdc |
| Tuning Sensitivity (avg.) | 29 MHz/V |
| Power Output | 2.25 dBm |
| Load Impedance | 50 Ω |
| Input Capacitance (max.) | 100 pF |
| Operating Temperature Range | -40 to 85 °C |
| Supply Voltage (Vcc, nominal) | 5 Vdc |
| Supply Current (typ.) | 19 mA |
| Package Style | MINI-14S-L |
It operates from 680 MHz to 720 MHz.
The device can be tuned with a voltage between 0.5 V and 4.5 Vdc.
The typical phase noise is –110 dBc/Hz at a 10 kHz offset.
Suggested applications include VSAT modems and base‑station digital radios.
