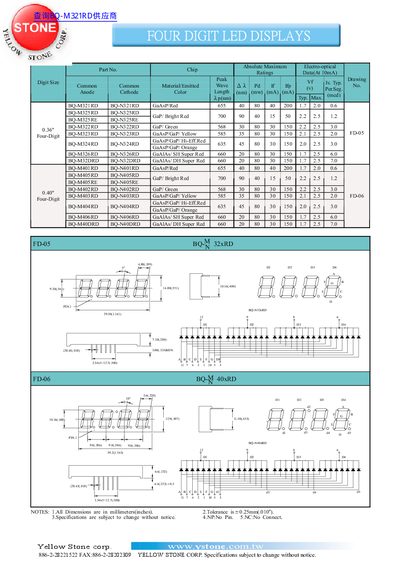

This is an electronic component data sheet, mainly including the packaging size, supply voltage, current, emission wavelength, emission color and other information of the component.
The Stone Four Digit LED Displays family includes a range of LED modules identified by part numbers such as BQ-M321RD, BQ-M322RD, BQ-M323RD, and BQ-M326RD. Each module is specified by color, peak wavelength and typical electrical parameters.
Physical dimensions are given in millimetres with a tolerance of +0.25 mm (0.010 in). All specifications are subject to change without notice, and the document notes the meaning of abbreviations such as NP (No Pin) and NC (No Connect).
| BQ-M321RD wavelength | 655 nm |
|---|---|
| BQ-M322RD wavelength | 368 nm |
| BQ-M323RD wavelength | 385 nm |
| BQ-M326RD wavelength | 660 nm |
| Dimensions unit | millimetres (inches) |
| Dimension tolerance | +0.25 mm (.010") |
The tolerance is +0.25 mm (0.010 in).
No, the specifications are subject to change without notice.
NP stands for No Pin and NC stands for No Connect.
